Extend the Zebra RFID Ecosystem to the Retail Edge

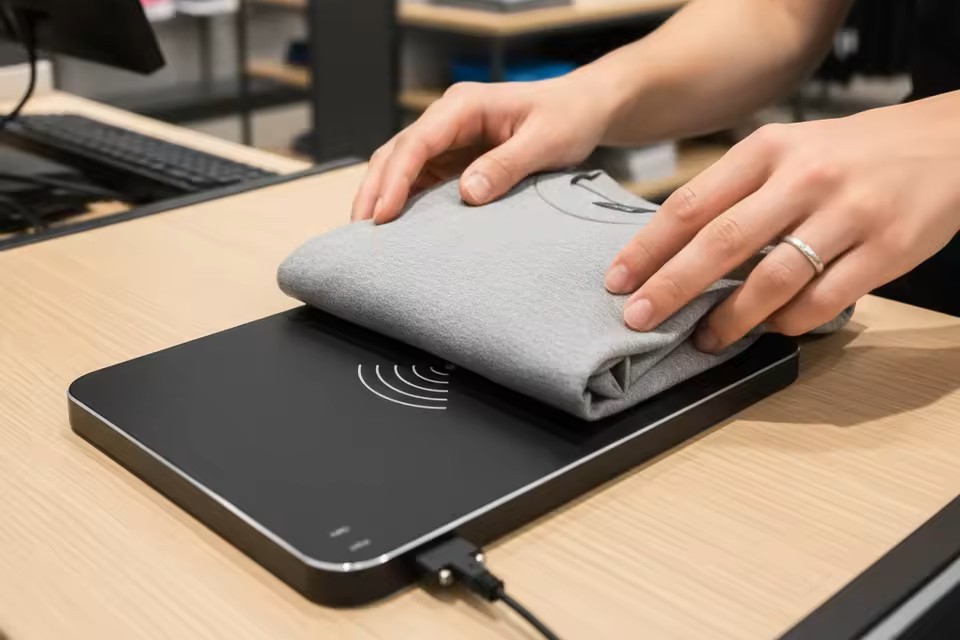

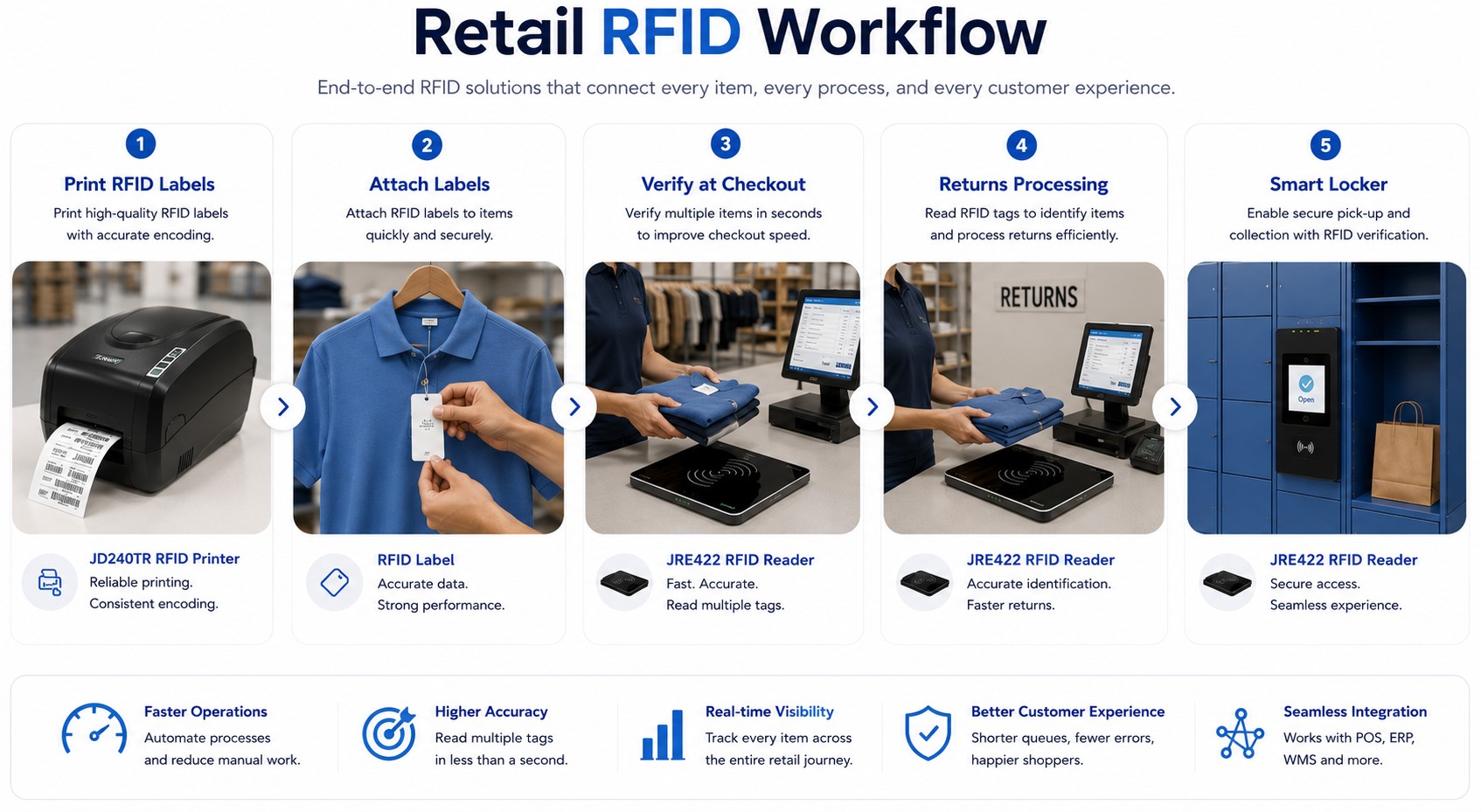

Deploy desktop RFID workstations for checkout, returns, encoding, and validation — with integrated antenna, controlled reading zones, fast multi-tag performance, and zero integration complexity.
Deploy desktop RFID workstations for checkout, returns, encoding, and validation — with integrated antenna, controlled reading zones, fast multi-tag performance, and zero integration complexity.
Why JNXRFID
Powered by Zebra RFID Module RE40 with global compliance.
Zebra 123RFID Utility (Windows Desktop)
Plug In and Go — USB Type-C, Encode at Register.
Customization Acceptance
Product Lineup

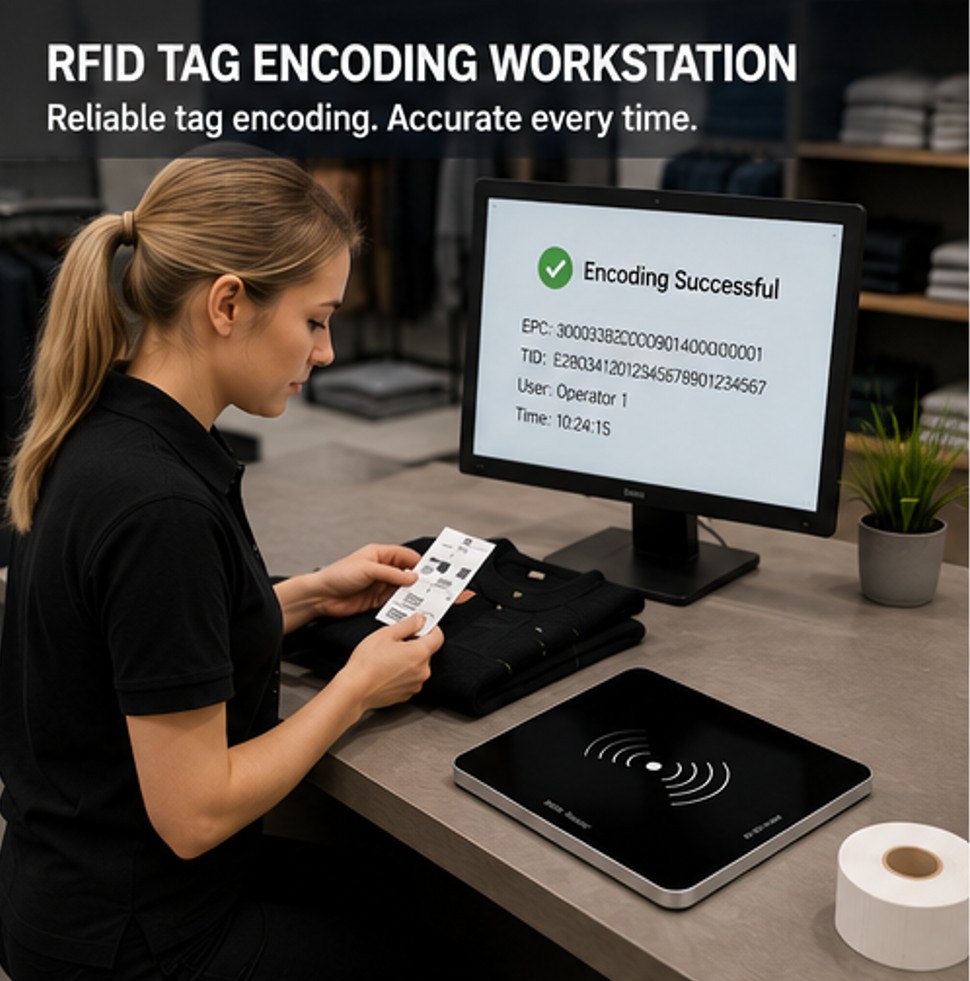

Desktop workstation RFID encoder/decoder for controlled small-batch operations.

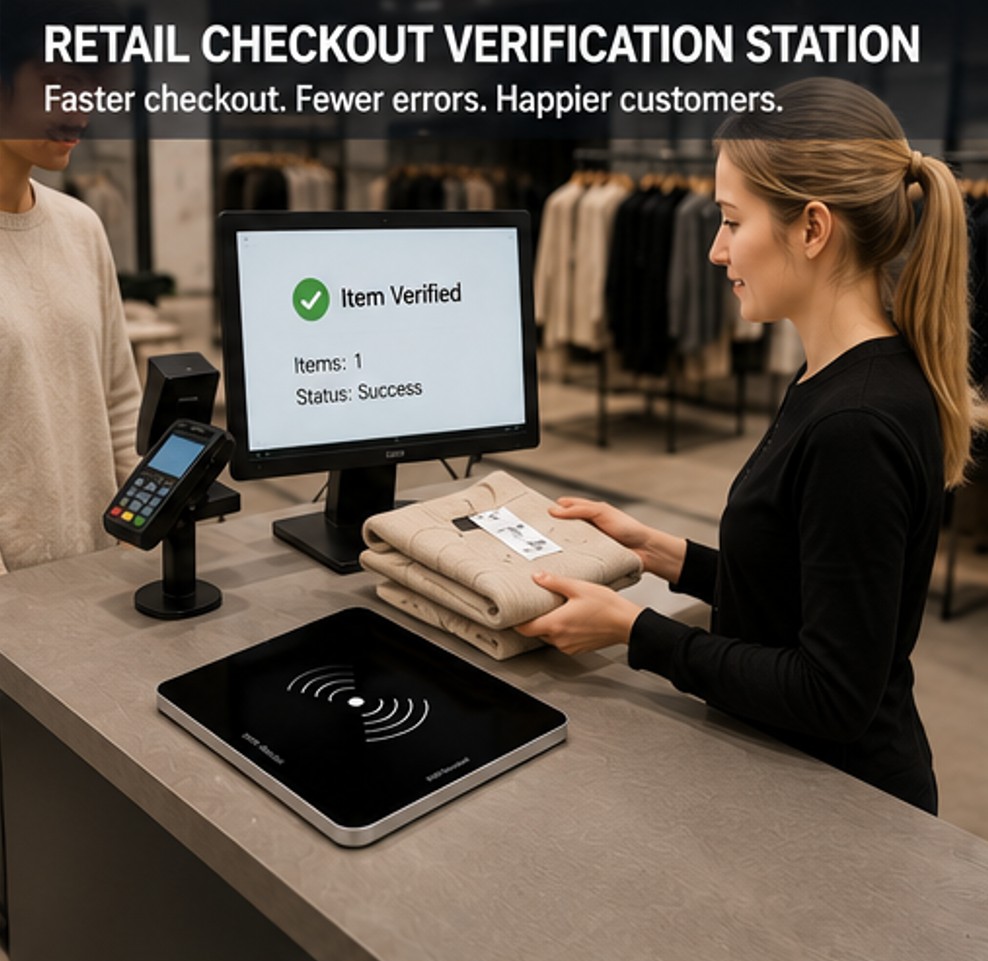

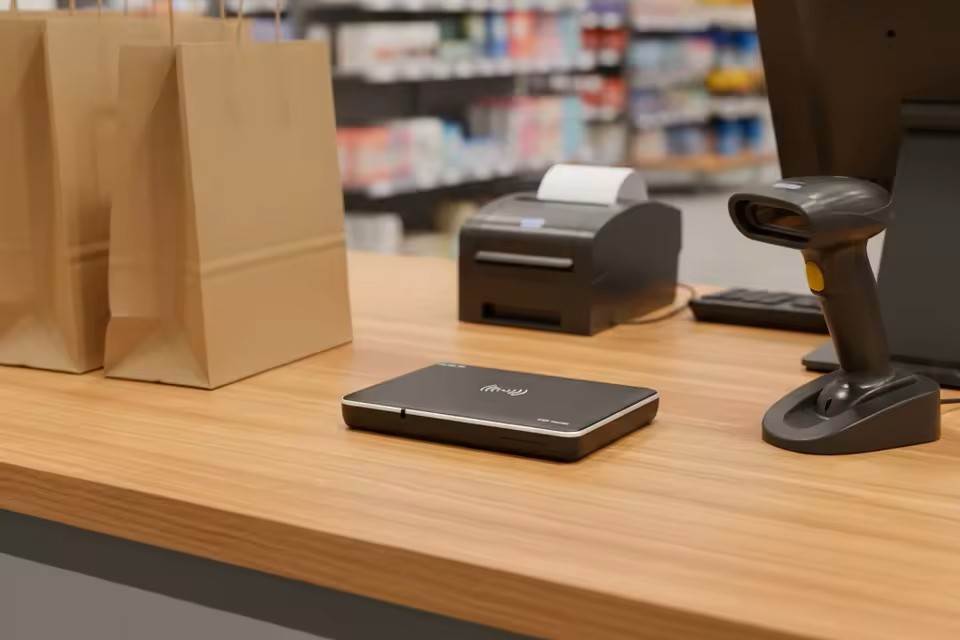

Compact integrated desktop reader/writer with a customizable reading zone.
Large-zone desktop RFID reader/writer for batch processing at workstations.

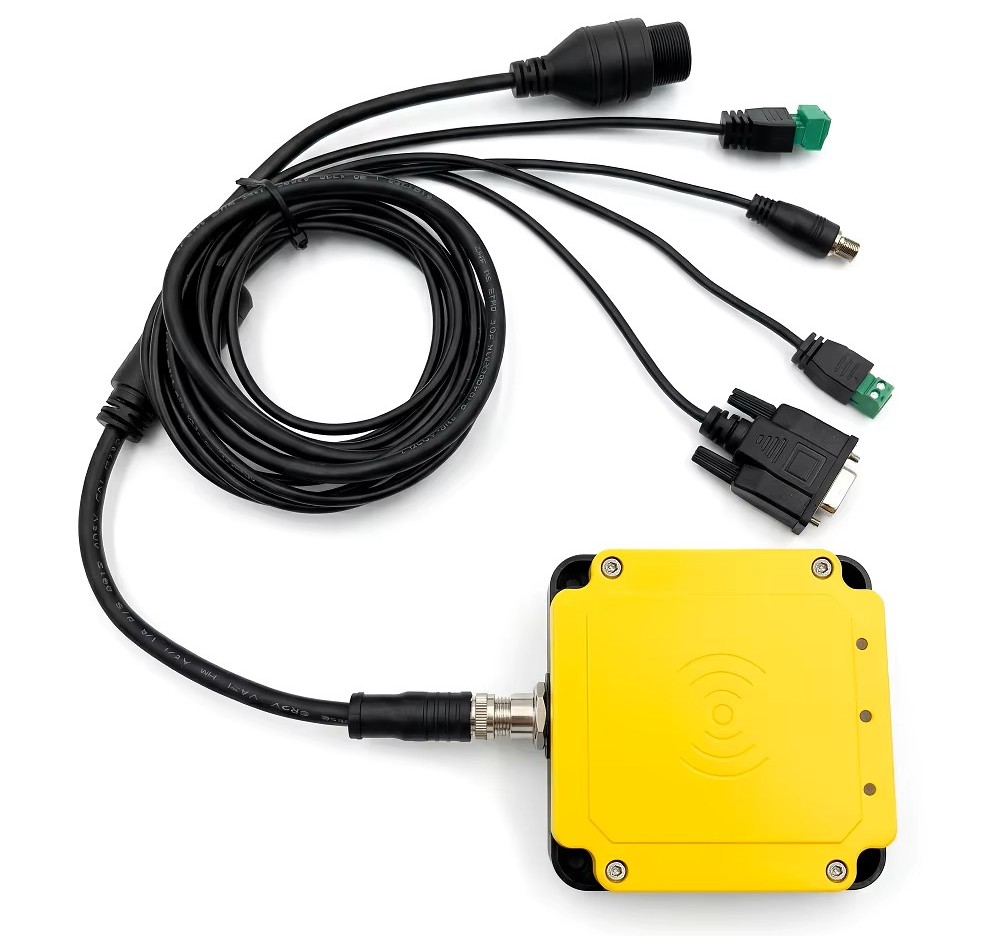

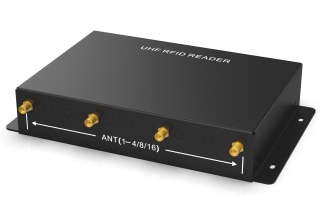

Industrial integrated UHF RFID reader/writer with Modbus for PLC integration.
Model Comparison
| Model | Tier | Best For | Reading Zone / Range | Write Zone / Range | Read Rate | RF Power | Sensitivity | Frequency | Interface | Antenna | Power | Dimensions | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

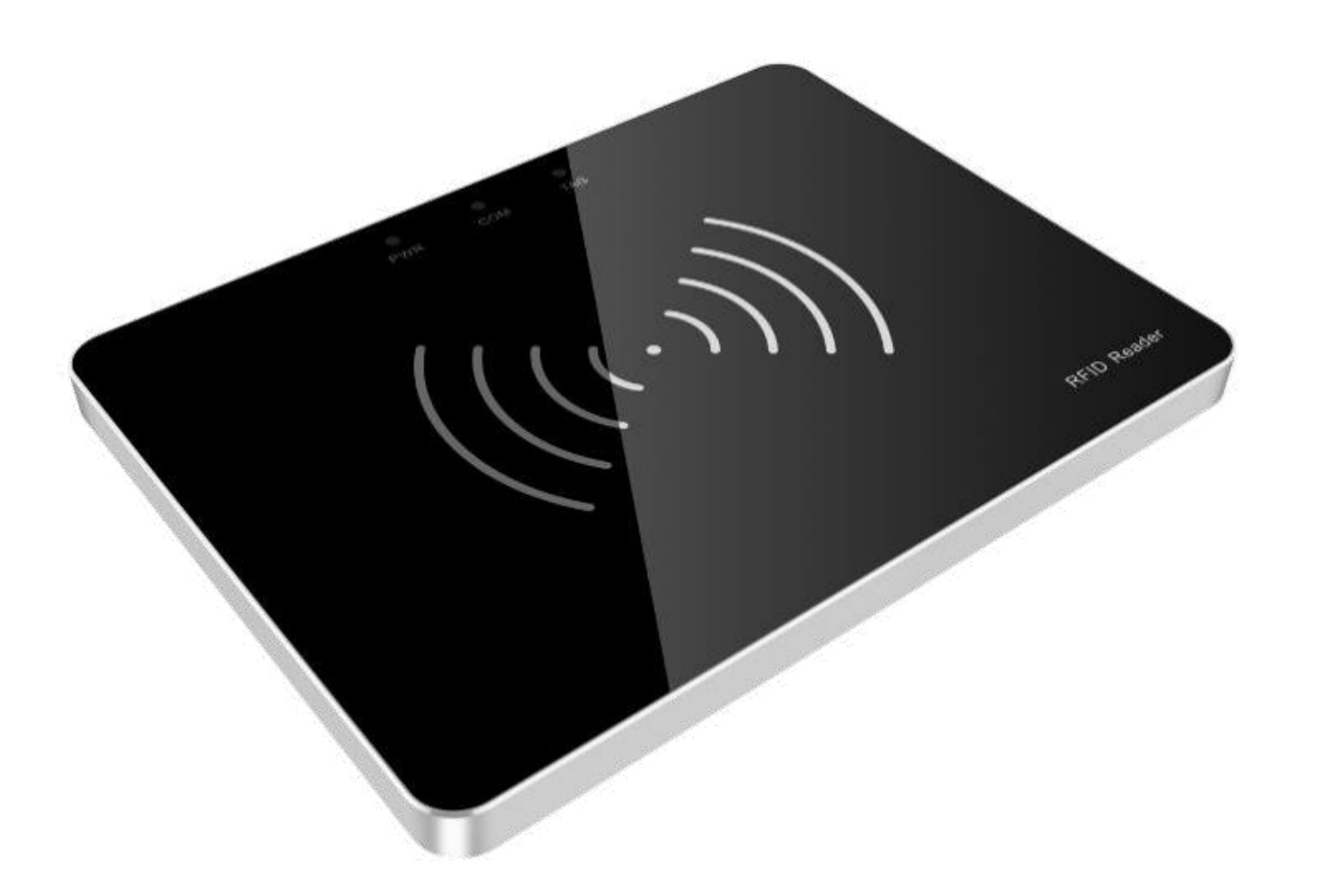

| JRE443 | Short-range | Tag encoding, Desk verification, Back-office counting | < 20 cm | < 10 cm | Up to 250 tags/sec | ≤ 27 dBm | < -75 dBm | 865–868 / 902–928 MHz | USB Type-C | Close-range super antenna | USB 3.0+ Type-C | 320 × 225 × 17 mm | 0.95 kg |
| JRE422 | Desktop (tunable) | Retail POS, Smart locker/kiosk, Workstation edge | Customizable reading zone | Customizable | Up to 250 tags/sec | -10 to +27 dBm | -78 dBm | 865–928 MHz (global) | USB | Circular polarized (optional near-field), >0 dBi | 2.7–5.5V (USB) | 255 × 203 × 26 mm | 0.92 kg |

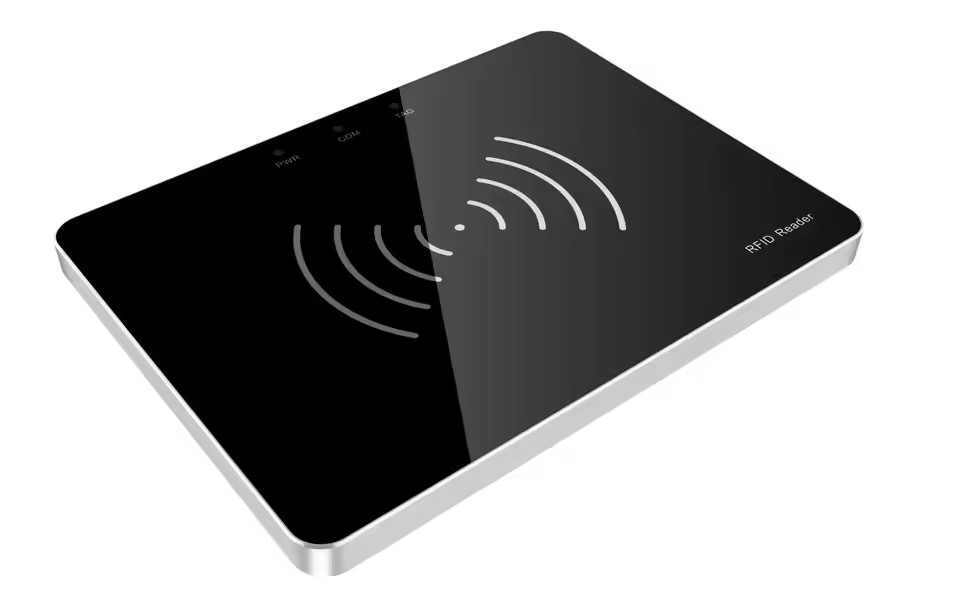

| JRE550 | Long-range | Packing verification, Warehouse I/O, Batch validation | > 4 m (typical) | ≤ 10 cm | Up to 250 tags/sec | Up to +27 dBm | -78 dBm | 865–928 MHz | USB, UART | Integrated high gain (>6 dBi) | 12–24V, 5–24W | 550 × 425 × 24.5 mm | 3.5 kg |
| JRE232 | Industrial (tunable) | Industrial automation, PLC integration, WIP checkpoints | Customizable reading zone | Customizable | Up to 250 tags/sec | -10 to +27 dBm | -78 dBm | 865–928 MHz (global) | Ethernet (PoE), RS232, RS485 | Integrated (built-in ~2 dBi) | DC 12–24V | 95 × 95 × 42 mm | 0.5 kg |

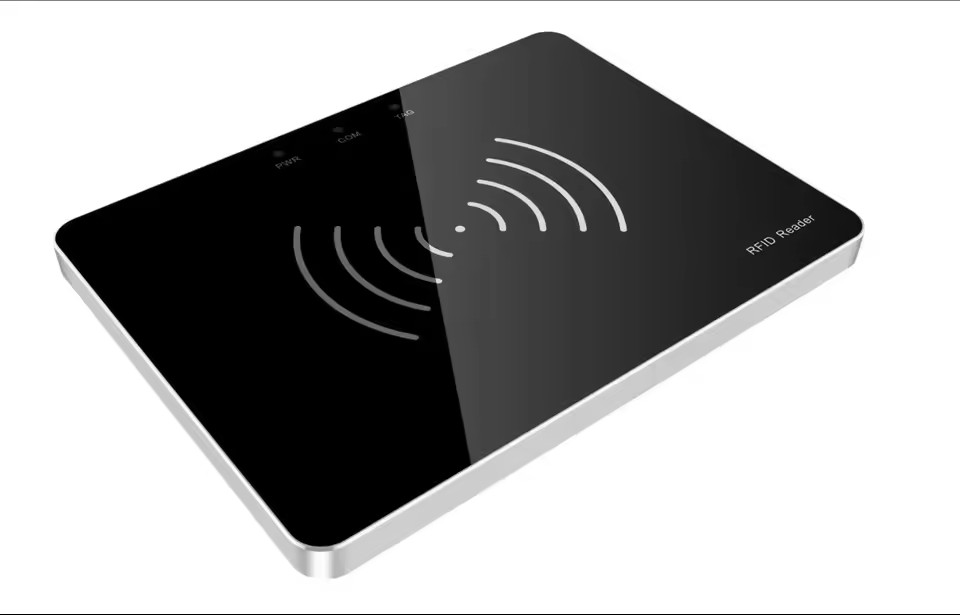

| JRE430C | Desktop (tunable) | Retail POS, Workstation verification, Kiosk/locker | Customizable reading zone | Customizable | Up to 250 tags/sec | -10 to +27 dBm | -78 dBm | 865–928 MHz (global) | USB (serial), UART (optional) | Default circular polarized; optional near-field; >0 dBi | TBD | 320 × 320 × 20 mm | 1.25 kg |
Reading zone can be customized via antenna options, RF tuning, and mounting/shielding/fixture design. Actual performance depends on tag type, orientation, environment, objects material, and local regulations.
Ecosystem
JNXRFID readers are built around the Zebra RE40 module and are compatible with Zebra 123RFID Desktop — a free Windows utility that simplifies RFID reader deployment, configuration, and testing. No proprietary software lock-in. No learning curve.
Free Windows application for reader discovery, configuration, firmware updates, and tag read/write testing. JNXRFID readers work with this utility out of the box.
Access developer SDKs and integration guides for custom application development. Build RFID capabilities into your existing POS, WMS, or MES systems.
Powered by the same Zebra RE40 UHF RFID module trusted by top retailers worldwide — ensuring reliability, regulatory compliance, and ecosystem compatibility.
FCC, ETSI, CE, and RoHS compliant. EU frequency band 865–868 MHz, max 33 dBm EIRP. Designed for global deployment across all major markets.
Resources
Enter your details to access datasheets, SDK tools, and compliance documents.
